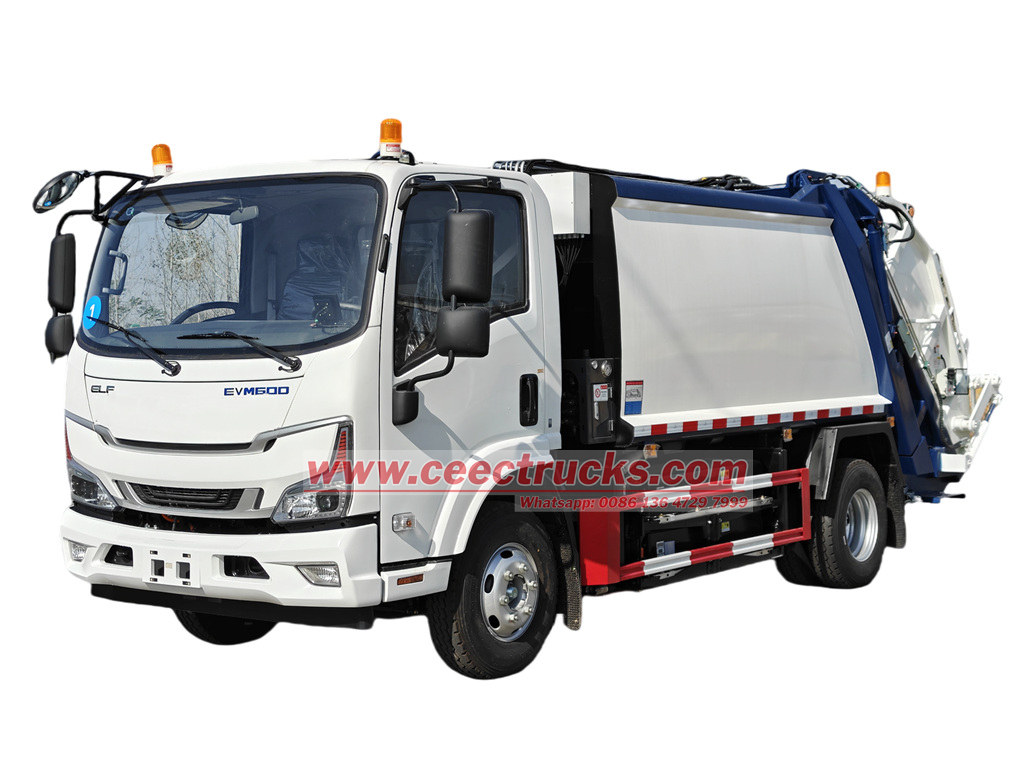

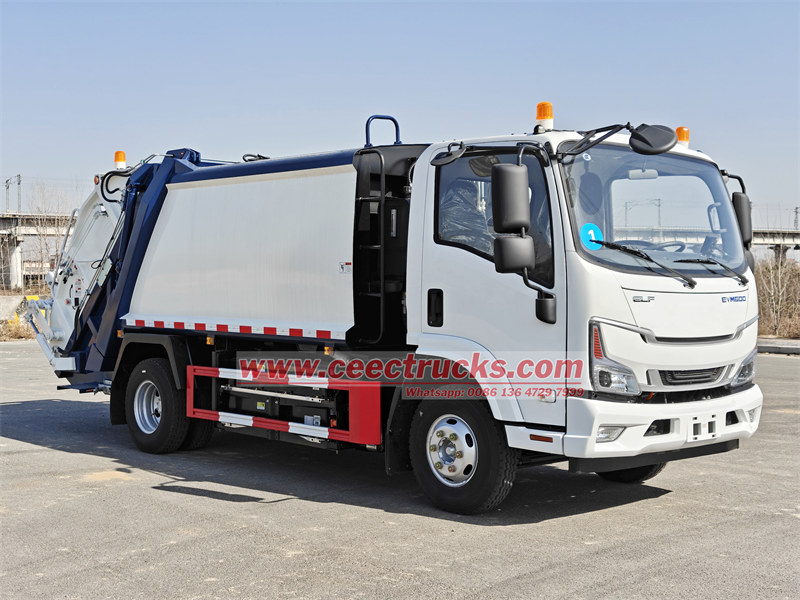

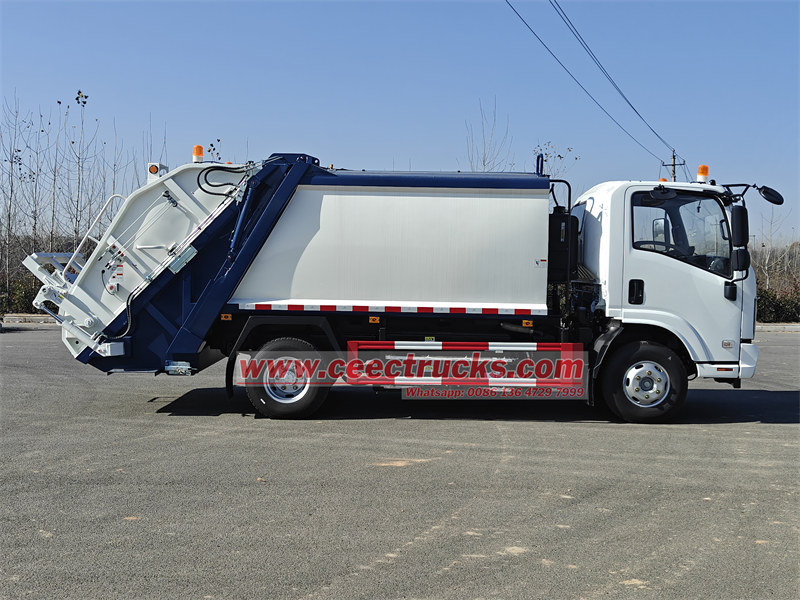

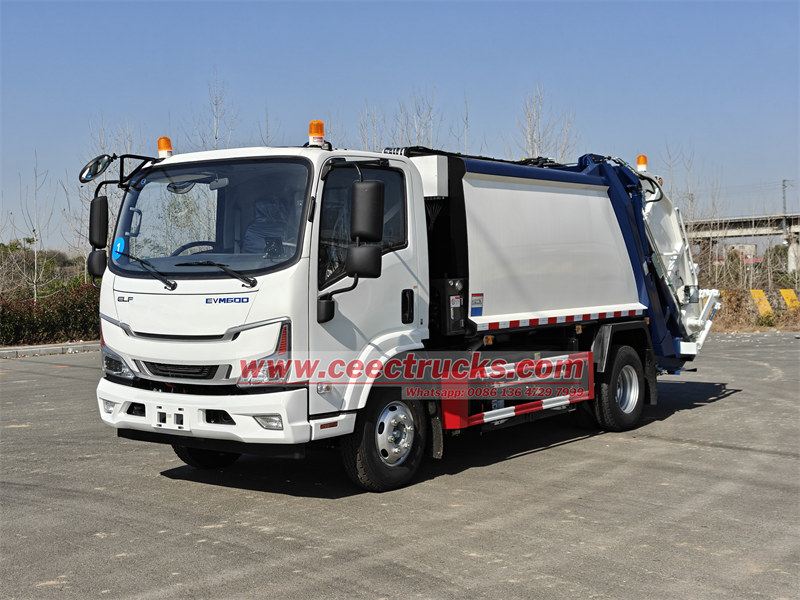

ISUZU electric new energy refuse compactor truck is designed based on EVM600 series truck chassis, mounted with 6000Liters garbage compactor body, based on internaional T420 material, thickness for side 4mm and floor 4mm, rear loading type and suitable for 240L and 1100L international standard garbage bins, integrated CAN BUS electric control box in cabin and rear hopper, which efficiently for working and convenient for usage. Painting and Logos 100% customized to meet all customer requirement.
Kapasidad ng trabaho:
6CBMDimensyon ( mm ):
7030*2200*2500 mmWheelbase ( mm ):
3365 mmlakas ng makina:
185KW / 251HPUri ng makina:
TZ370XS-LKM1201Axle drive:
4x2, LHDRemarks:
New energy Electric type garbage truck
[kung gte mso 9]>

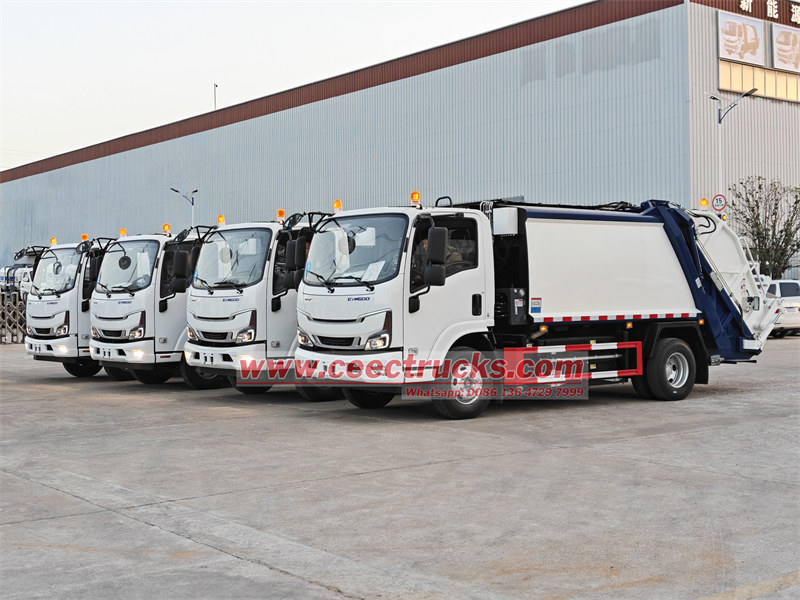

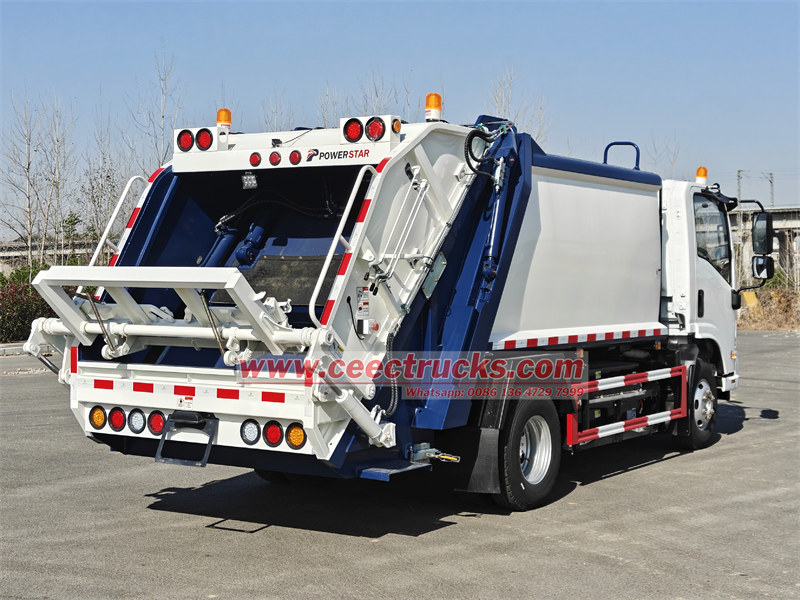

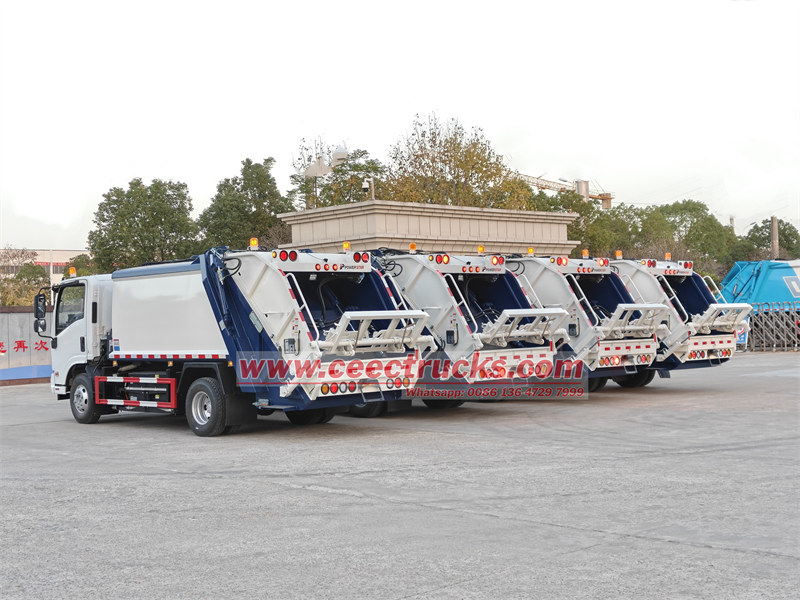

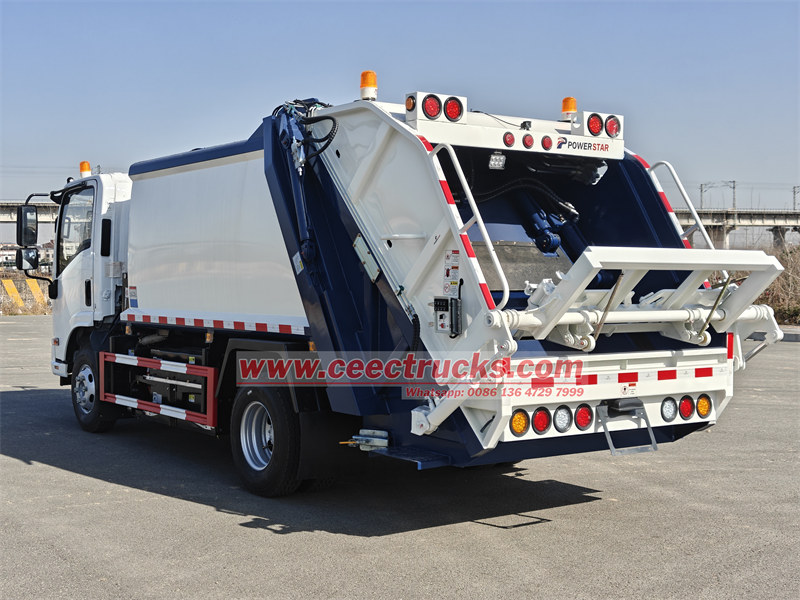

South American clients from Haiti, who purchased multiple units ISUZU EVM600 rear loader garbage truck, which is manufactured by CEEC TRUCKS, and the ultimate garbage collection machine in the waste management area. Which designed based on ISUZU EVM600 electric truck chassis, matched with CATL 107kwh lithium iron phosphate battery, 4 sets independent battery, with each battery 26.73kWh, rated voltage is 154.56V, matched working with TZ370XS-LKM1201 motor, peak power can be 185kw and peak torque can be 1200N.m, and the motor controller is KTZ54X38S-LKC1201, which is liquid cooling type, smart and reliable for working. Upper body matched with T420 material rear loader type compactor body kit, rear lifting device can be 240L and 1100L international standard bins, both metal material and plastic material are available.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
▶ Features:
★ CATL battery with 106.95kwh, separately 4 battery
★ Electric type with 185KW motor, 100,000 Km without prblem.
★ Japanese ISUZU EVM600 newly cabin

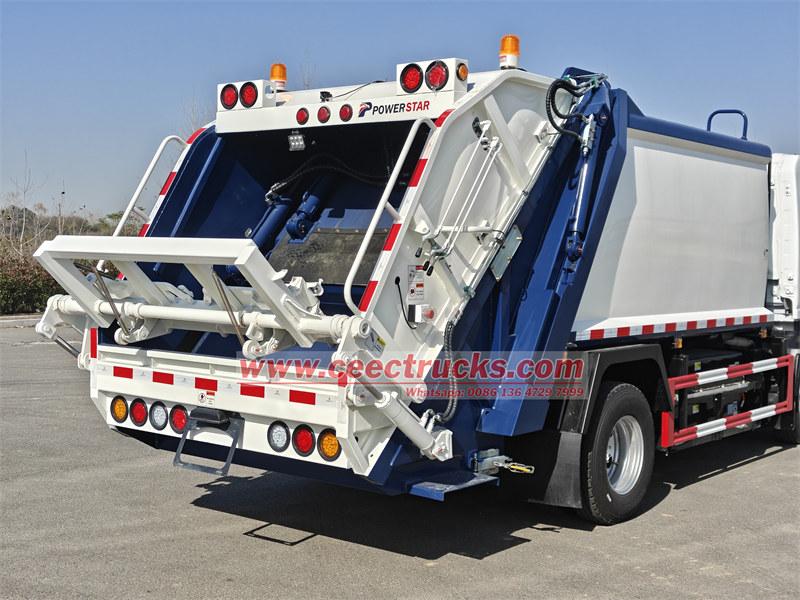

★ 6CBM compactor body, T420 material, thickness for side and floor 4mm

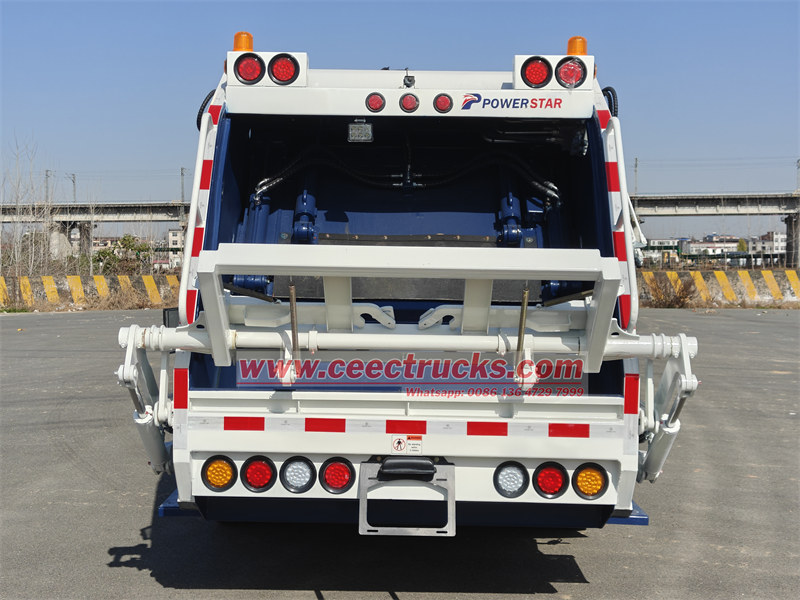

★ Rear tilting device for 240L, 360L, 770L, 1100L bins
★ Integrated CAN BUS & Hydraulic control system
▶ ISUZU EVM600 Refuse Compactor Truck Parameters :
| TRUCK Model |
ISUZU EVM600 refuse compactor truck |
|
|
Manufacturer |
CEEC TRUCKS |
|
|
Vehicle Parameters |
|
7030x2095x2560 (mm) |
|
Curb Weight: |
5200Kg |
|
|
GVW: |
8995kg |
|
|
Wheelbase: |
3360mm |
|
|
Drive Type: |
Motor Direct Driving |
|
|
Motor |
Motor Model: |
TZ370XS-LKM1201 |
| Motor Type |
Permanent magnet synchronous motor |
|
|
Rated /Peak Power: |
100kW / 185kw |
|
|
Rated /Peak Peak torque: |
500N.m / 1200N.m |
|
|
Rated / Peak Speed |
1910r/min / 4500r/min |
|
|
Protection Stage |
IP68 |
|
|
Insulated Stage |
H |
|
|
Working System |
S9 |
|
|
Cooling Model |
Liquid Cooling |
|
|
Motor Controller |
Model |
KTZ54X38S-LKC1201 |
|
Continues Working Electricity |
205A |
|
|
Short-time Working Electricity |
350A |
|
|
Protection Stage |
IP68 |
|
|
Working System |
S9 |
|
|
Cooling Model |
Liquid Cooling |
|
|
Auxiliary Motor Controller |
Model |
FA4Z5.5SCF00 |
|
Protection Stage |
IP68 |
|
|
Rated Inlet Voltage |
600Vdc |
|
|
DC/AC Output Voltage |
380Vac |
|
|
DC/AC Rated Power |
5.5kW & 5.5kW |
|
|
DC/AC Peak Power |
7.5kW & 7.5kW |
|
|
DC/AC Rated Electricity |
13A & 13A |
|
|
DC/AC Peak Electricity |
19.5A & 19.5A |
|
|
DC/DC Rated Power |
3kW |
|
|
DC/DC Rated Electricity |
110A |
|
|
Battery |
Battery Brand/ Model: |
CATL/ L173TB2 |
|
Battery Type: |
Lithium iron phosphate |
|
|
Battery Capacity: |
106.95kwh (4 sets indeendent battery, with each abttery 26.73kWh, rated voltate is 154.56V) |
|
|
Driven Unit |
Model |
STED3010S |
|
Maximum Output Torque |
1300N.m |
|
|
Speed Ratio |
2.743/1.000 |
|
|
Fuel Charge |
1.8L |
|
|
Transmission Box Model |
J2S130 |
|
|
Electric Turning Pump |
Model |
2149 08158 001 |
|
Power |
1.5kW |
|
|
Voltage |
AC380V |
|
|
Electricity |
3.5A |
|
|
Speed |
1500r/min |
|
|
Protection Stage |
IP68 |
|
|
Insulated Stage |
H |
|
|
Flow Rate |
12L/min |
|
|
Pressure |
12Mpa |
|
|
Rotation Direction |
Right Side |
|
|
Electric Compressor |
Model |
8103010-GEA00 |
|
Rated Voltage |
DC540V |
|
|
Refrigerating Fluid |
R134a |
|
|
Electric Water Pump |
Model |
02.03.222.1009 |
|
Performance |
Maximum Speed: |
90km/h |
|
Endurance mileage: |
280km |
|
|
Charge mode: |
Fast charge |
|
|
Max Climb Capability |
30% |
|
|
Seats |
Front Seat: |
3 |
|
Chassis |
Front/ Rear Wheel Distance: |
1640/1655mm |
|
Front/Rear Suspension |
1121/1387mm |
|
|
Axle Loads: |
3300/5695kg |
|
|
Approach/Departure angle: |
23/19 |
|
|
Leaf Spring: |
6/6+6 |
|
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.50R16LT 16PR |
|
|
Standard Configuration: |
1 |
Power steering system |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
Garbage body |
Capacity |
6cbm |
|
Material |
Super stronger steel |
|
|
Thickness |
Side 4mm |
|
|
Floor 4mm |
||
|
Hydraulic Cylinder |
Push Plate 1 set |
|
|
Rear Hopper 2 sets |
||
|
Slide Plate 2 sets |
||
|
Scraper 2 sets |
||
|
Rear Tilting Device 2 sets |
||
|
PTO |
High quality brand |
|
|
Gear Pump |
Dual hydraulic oil pump connects with PTO |
|
|
Control System |

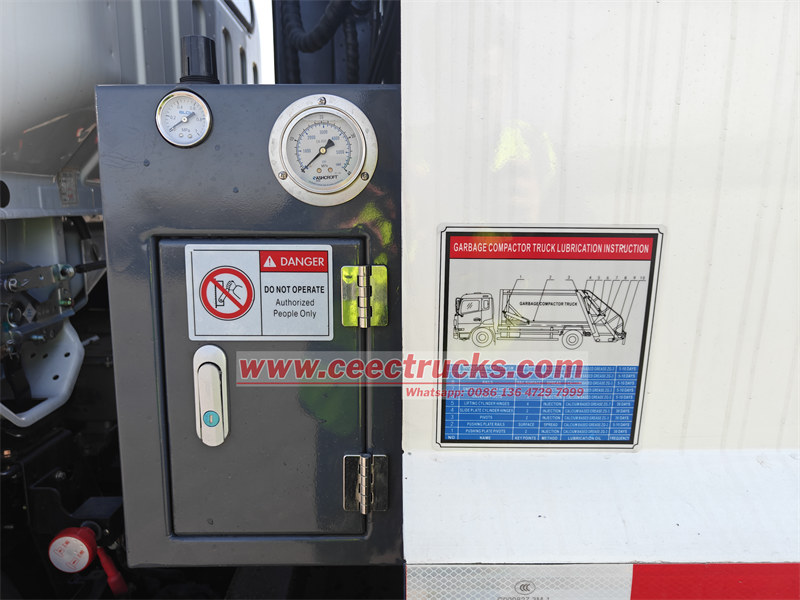

Hydraulic Control Valve |
|
|

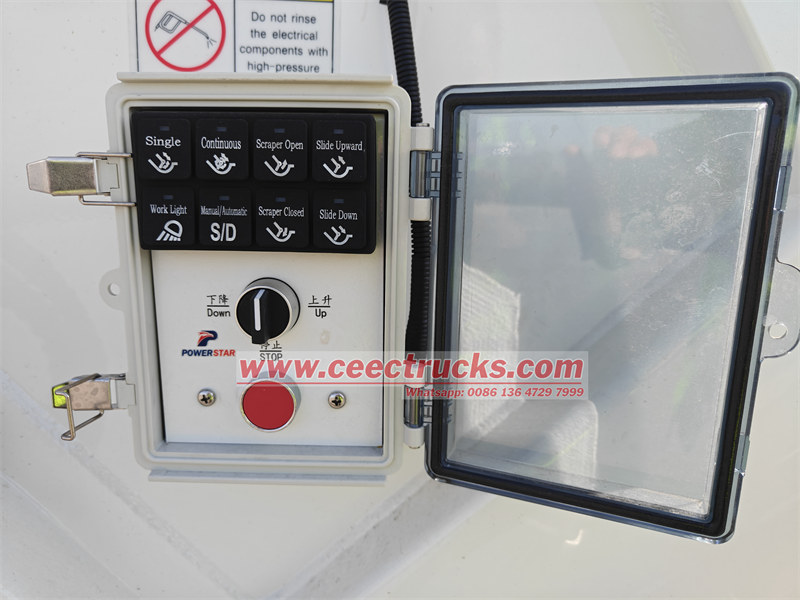

CAN BUS Electric Control Box |
||
|
Rear Tilting Device |
Optional 1 with 2 sets 240L bin |
|
|
Optional 2 with 1 set 1100L bin |
||
|

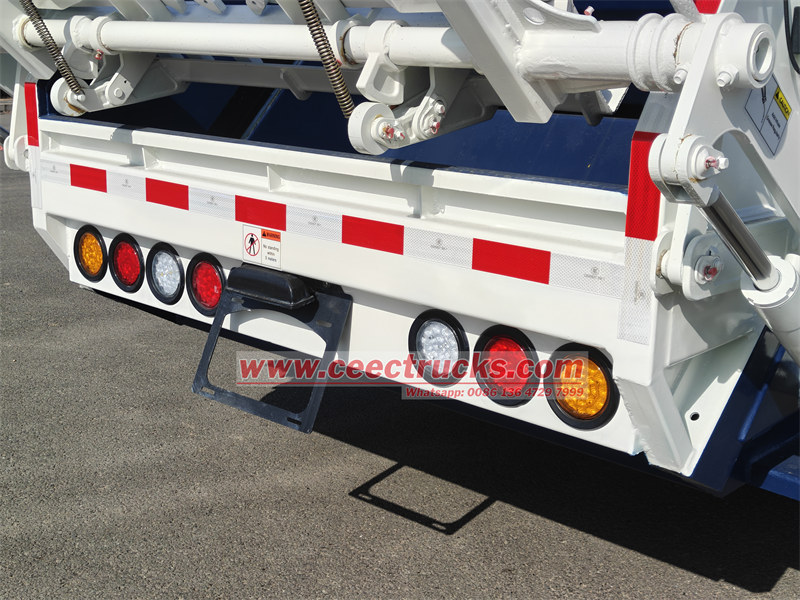

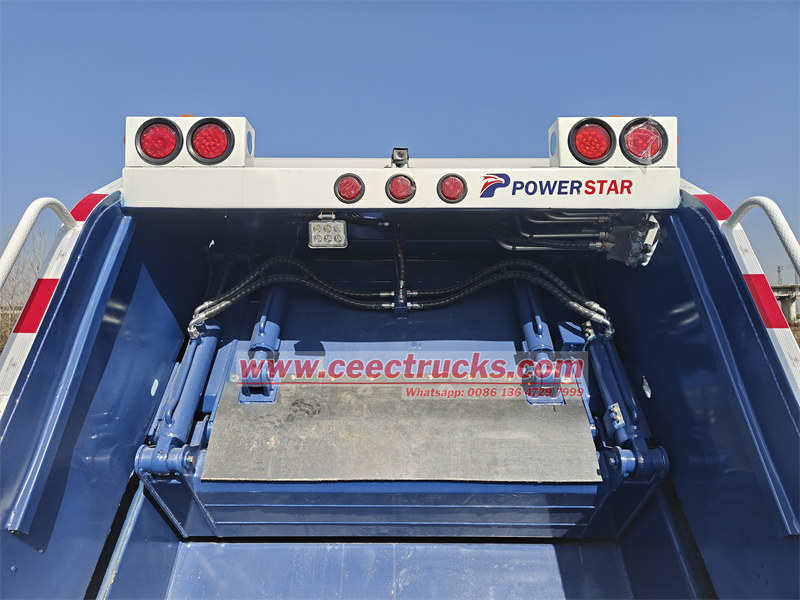

Light System |
Full sets LED safety light system |
|
|
Painting & Logos |
As customized |
|
|
Fast Charge time |
1.5 hours |
|
▶ EVM600 Isuzu electric truck Component :
ISUZU EVM600 series electric truck chassis is the third generation EV truck, which used top 1 chinese brand CATL battery, matched working with reliable MOTOR and control, so can guarantee the ISUZU truck an ideal chassis to be modify as multiple type special trucks. Below showing main component of ISUZU truck chassis.

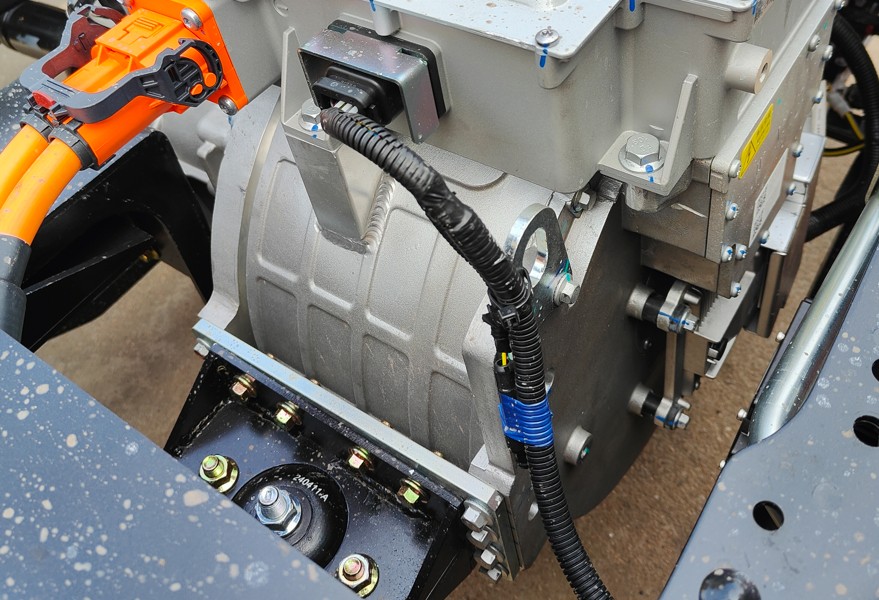

Isuzu EV truck motor
Motor Model: TZ370XS-LKM1201
Isuzu EV truck motor controller
Model KTZ54X38S-LKC1201
Continues Working Electricity 205A
Short-time Working Electricity 350A
Protection Stage IP68
Working System S9
Cooling Model Liquid Cooling

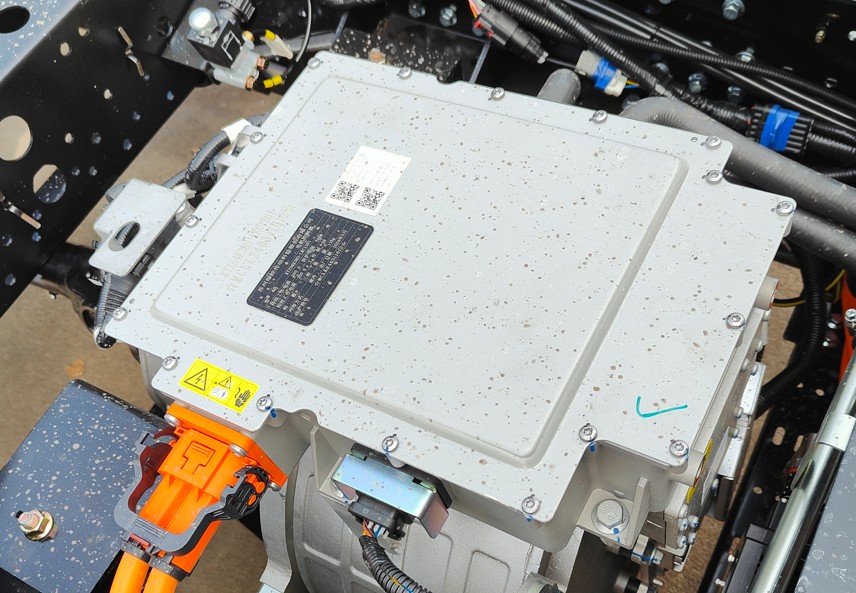

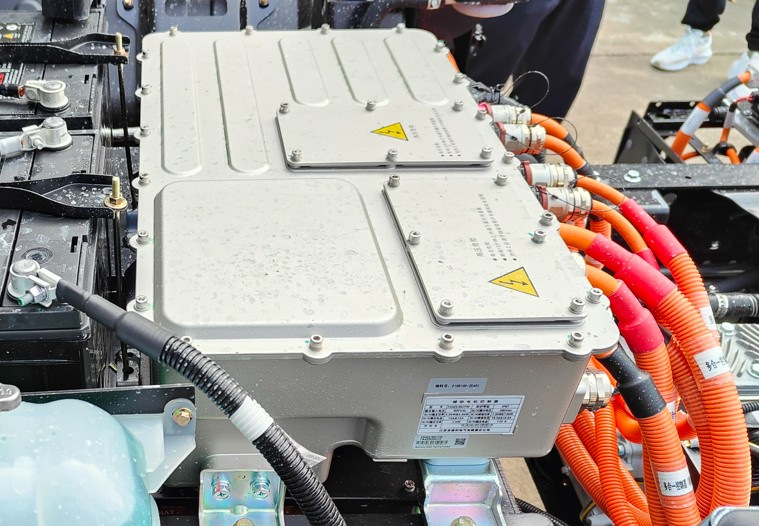

Isuzu EV truck motor
Model FA4Z5.5SCF00

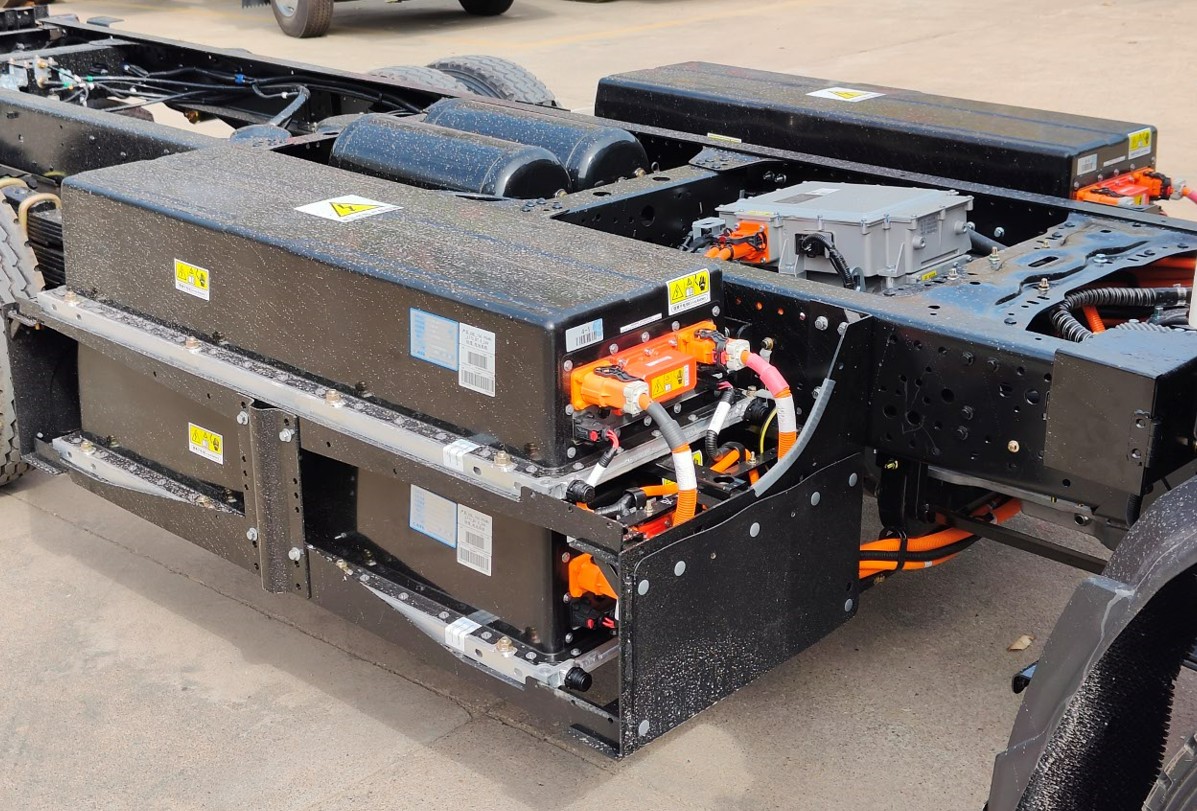

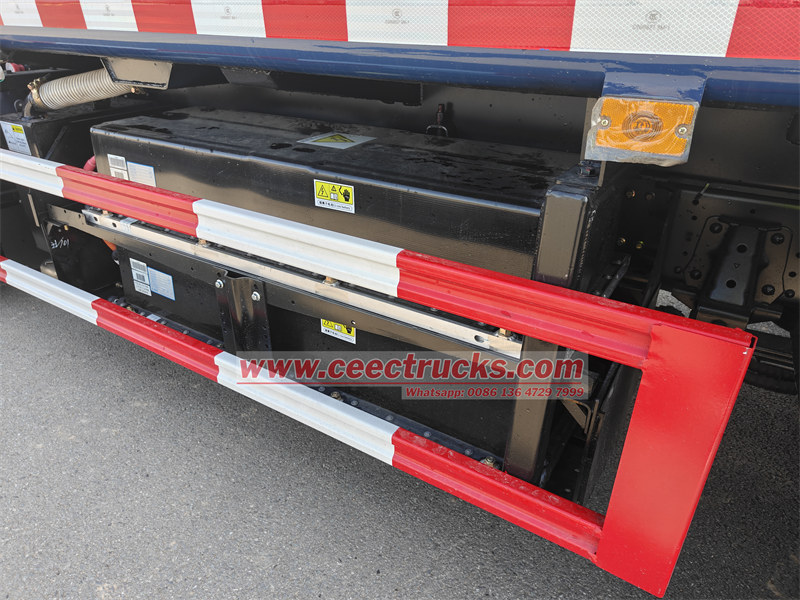

ISUZU EV truck mounted with CATL battery 107kwh
Battery Brand/ Model: CATL/ L173TB2
Battery Type: Lithium iron phosphate
Battery Capacity: 106.95kwh
(4 sets independent battery, with each battery 26.73kWh, rated voltage is 154.56V)

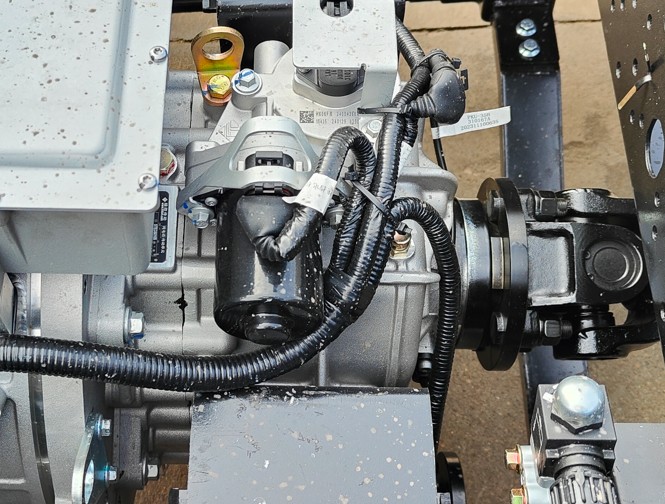

Isuzu EV truck driven unit
Model STED3010S

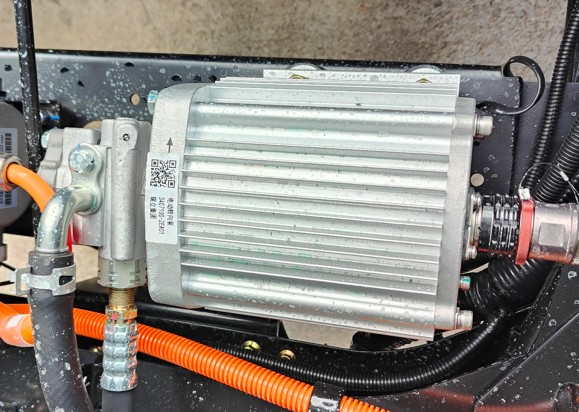

Isuzu Electric truck turning pump
Model 2149 08158 001
Power 1.5kW
Voltage AC380V
Electricity 3.5A
Speed 1500r/min
Protection Stage IP68
Insulated Stage H
Flow Rate 12L/min
Pressure 12Mpa
Rotation Direction Right Side

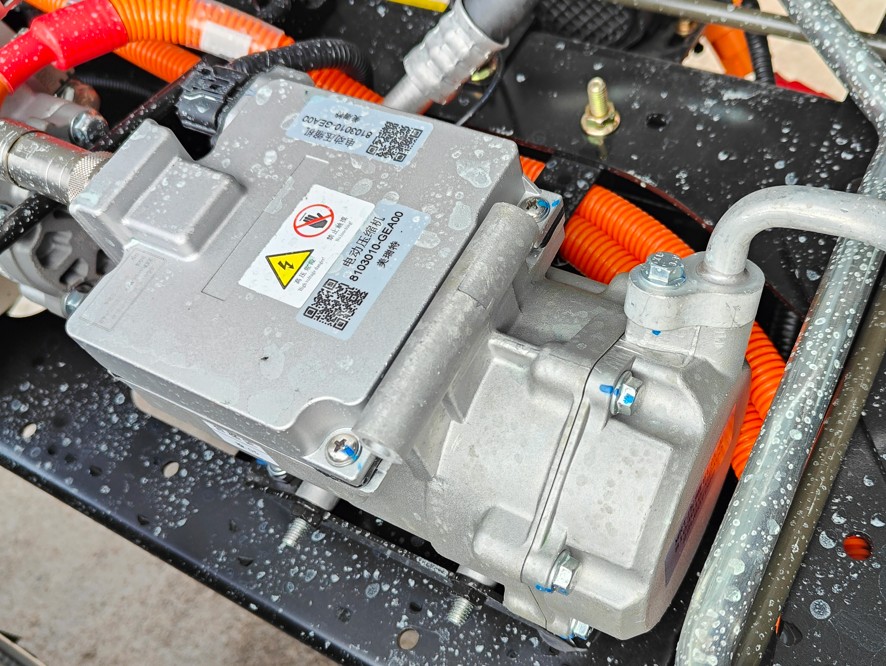

Isuzu electric truck compressor
Model 8103010-GEA00

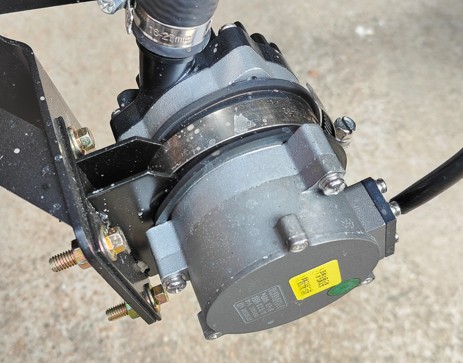

Isuzu Electric truck Water Pump
Model 02.03.222.1009

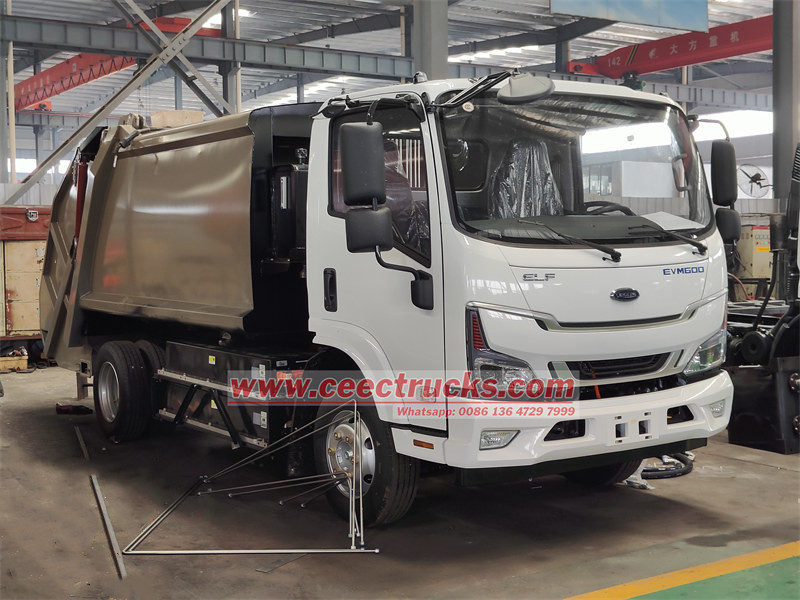

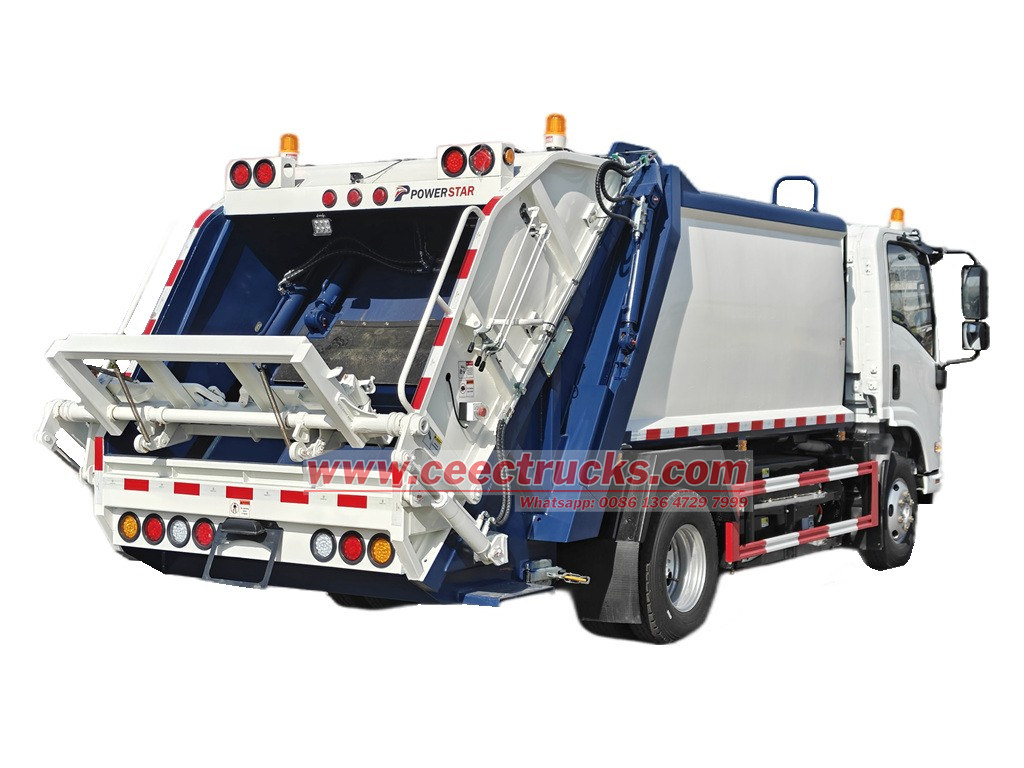

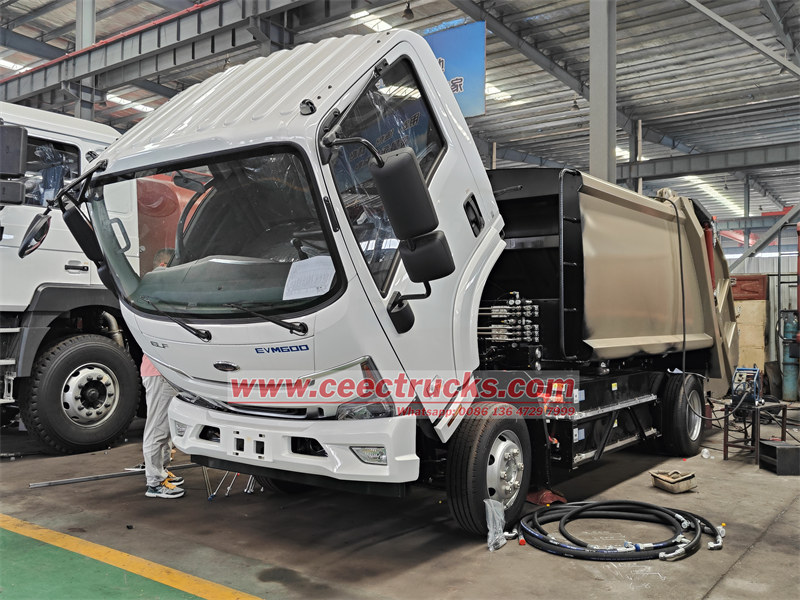

▶ How to manufacture Isuzu EV rear loader :

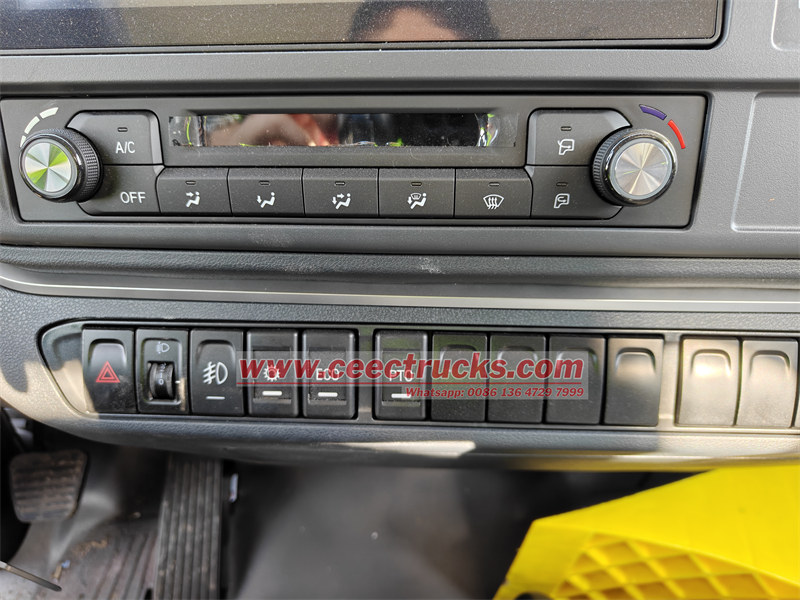

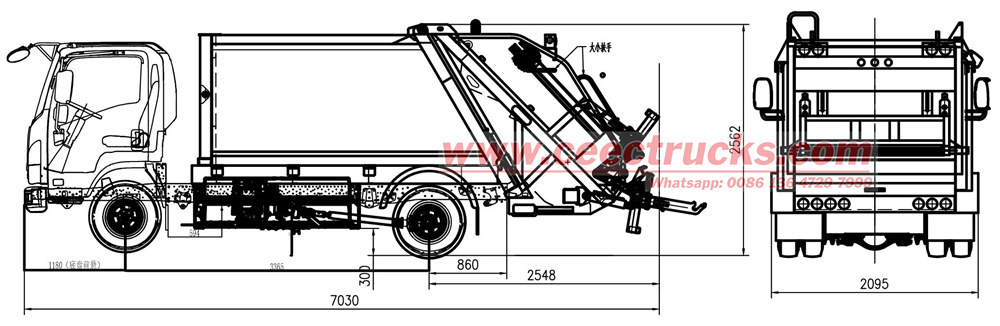

After ISUZU EVM600 light duty electric truck chassis arrived our factory, we CEEC TRUCKS Engineer Department design the CAD drawing of the upper compactor body kit, start installed the PTO on truck chassis and gear pump to get power from ISUZU electric truck. Then installed the customized 6cbm rear loader body kit on it, connected with gear pump to guarantee all hydraulic cylinder moving, then can realize all hydraulic function.
▶ Advanced features for Isuzu Electric Garbage Truck :
ISUZU EVM600 light duty electric rear loader compactor truck is designed for solid waste collection, compression and transprotation, which use dual-track packing system, push shovel matched working with nylon plate for smoothly working, and this system is designed with double way compressing function, matched working with back pressure valve, to guarantee loading ability more efficiency. CEEC TRUCKS adope multiple nylon plate for rear sliding plate, and making up and down working more efficiently. The rear loading type can be customized as 240L and 1100L internation standard garbage bins, lifting capacity can be over 1000kg.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5. promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★
New energy EV type, ZERO emission,
super powerful
★ TOP 1 brand CATL battery, 107 kwh
★ 6CBM compactor body capacity can be optional.
★
12 months fast moving spare parts for FREE
★ Authorized ISUZU Garbage Compactor Truck exporter
★ Easy operation and easy maintenance
