Howo mabigat na 20,000L na trak ng tangke ng dumi sa alkantarilya

Ang HOWO septic vacuum truck ay isang sasakyang pang-sanitasyon na espesyal na ginagamit para sa pagkolekta, paglilipat, paglilinis at pagdadala ng putik, dumi sa alkantarilya, atbp. Ang pangunahing layunin nito ay upang maiwasan ang pangalawang polusyon ng mga pollutant na ito sa kapaligiran.

Pagbabayad:
T/T, West Union
Pinagmulan ng produkto:
China CEEC
Pagpapadala ng port:
China main port
Oras ng tingga:
45 Days
Kapasidad ng trabaho:
20000L
Dimensyon ( mm ):
10300*2530*3150mm
Wheelbase ( mm ):
4600+1350 mm
lakas ng makina:
400 HP
Uri ng makina:
WP12S400E201
Axle drive:
6x4
Gear box:
HW19710
Remarks:
Jurop pump, 6×6, RHD drive is optional

Pagtatanong ngayon

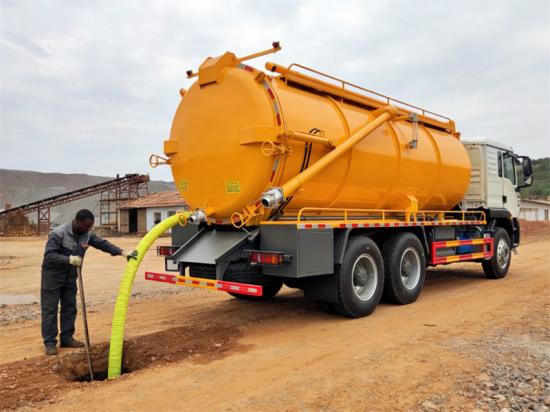

Howo 20,000 litro na trak ng paglilinis ng dumi sa alkantarilya is a sanitation vehicle specially used for collecting, transferring, cleaning and transporting sludge, sewage, etc. Its main purpose is to avoid secondary pollution of these pollutants to the environment. HOWO vacuum suction truck has the function of self-priming and self-discharging, can work quickly and efficiently, and has a large loading capacity and convenient transportation. They are usually used in many fields such as urban sanitation, highways, community sanitation, garden green belts, etc.

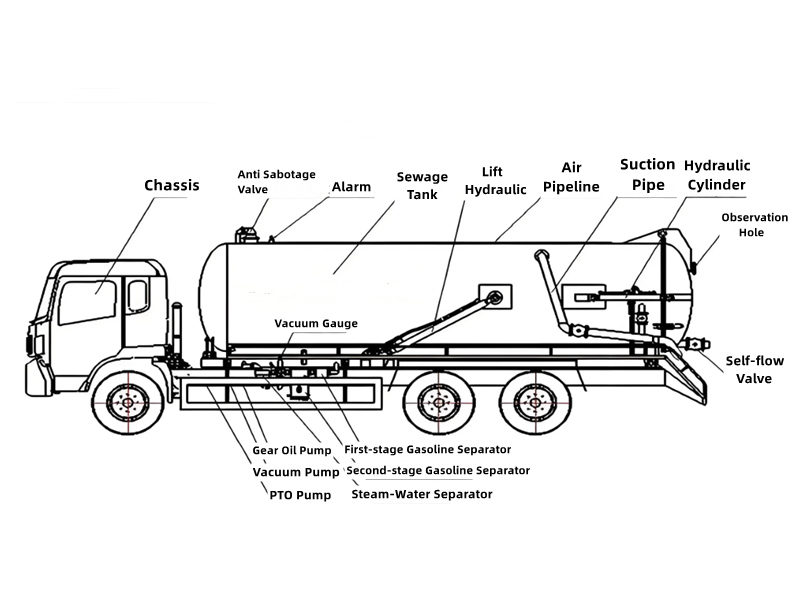

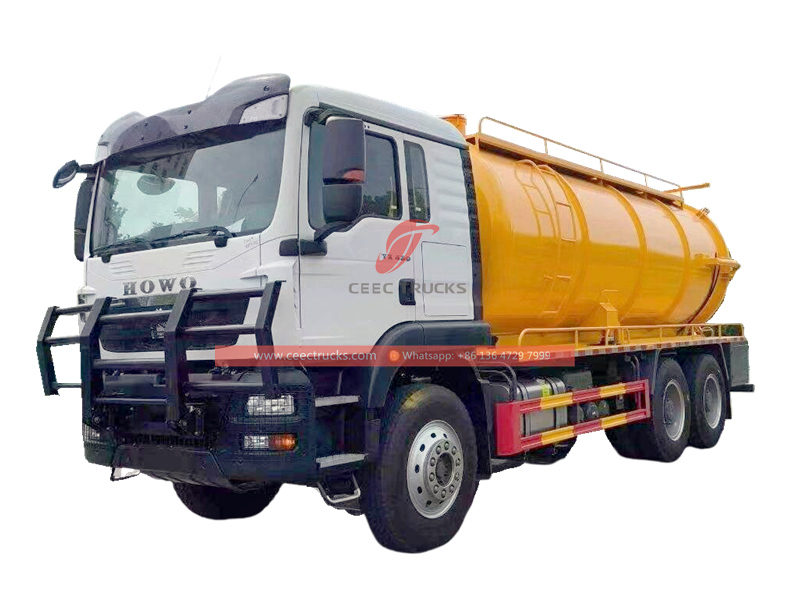

Howo 6x4 sewage tank truck

✦ Product Introduction of Howo Sewage Tank Truck « « «

Manufacturer: CEEC TRUCKS GROUP

Product Features:

☛ Howo heavy 6x4 chassis with stronger power WP12S400E201 400HP engine.

☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.

☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.

☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

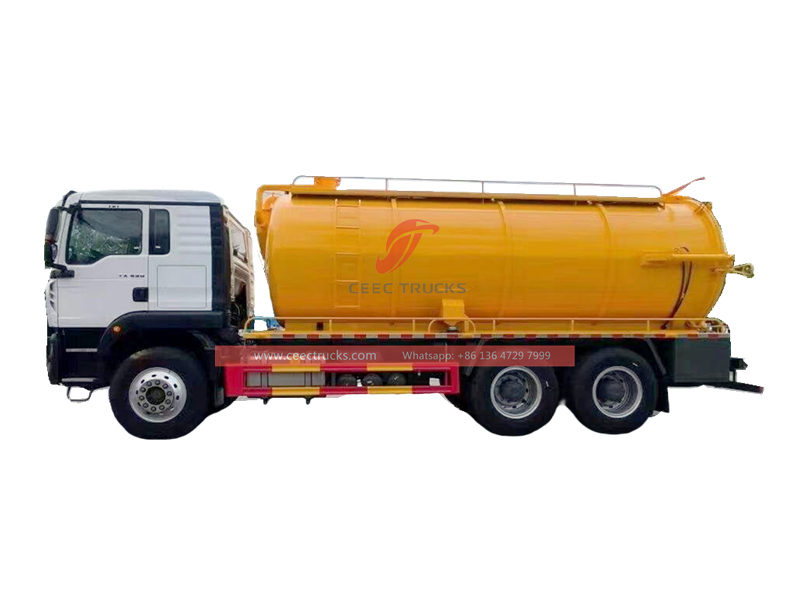

Howo 6x4 heavy sewage tank truck

✦ Product Parameter of Howo Vacuum Sewer Truck « « «

Howo 6x4 sewage tank truck

Howo heavy 20000L septic tanker truck
Vehicle Description
Overall dimensions	103 002 53 0 31 50mm
GVW	25 00kg
Curb weight	12350 kg
Sewage tank (m3)	20
Drive system	6 * 4
Chassis Description
Chassis brand	Howo
Steering	LHD
Cab	Howo ,single row, 2 seats,with A/C
Wheelbase	4600+1350 mm
Tire specification	12.00 R 20
Tire quantity	10 tires and 1 spare tire
Engine	Engine model	WP12S400E201
	Emission level	EURO 3
	Displacement	9.85 L
	Horse power	400 HP
	Weight	1360 Kg
	Fuel	Diesel
Gear box	Model	HW19710
	Number of gears	10 -speed
Brake system	Air break
Axle	Front	7 . 5 T
	Rear	16 T *2
Fuel tanker	Type	Stainless steel
	Capacity	400 L
Tanker Description
Tanker	Capacity	20 000 Liters
	Material	6 mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank

Howo sewage tank truck

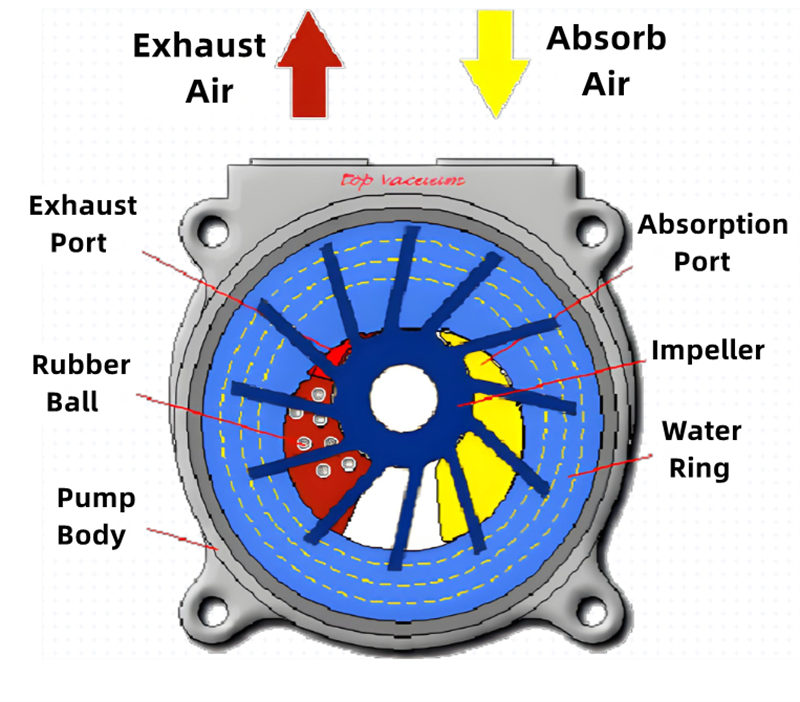

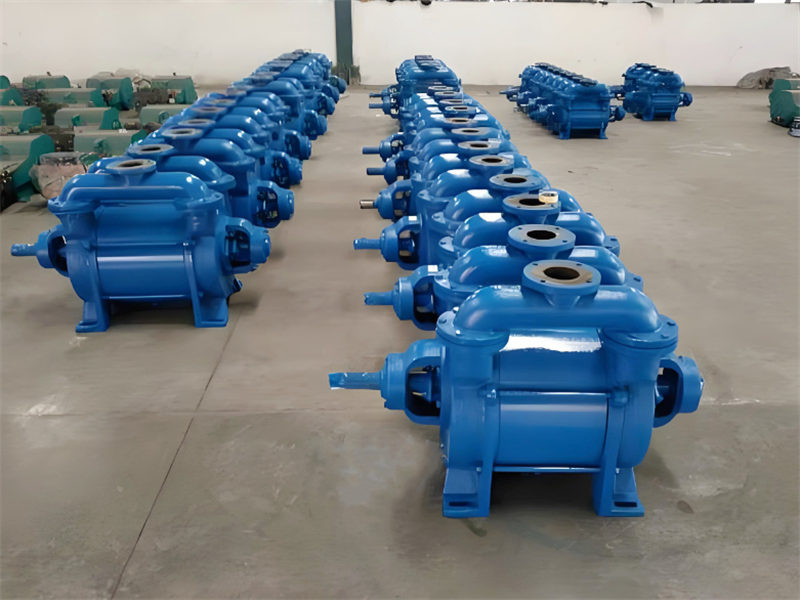

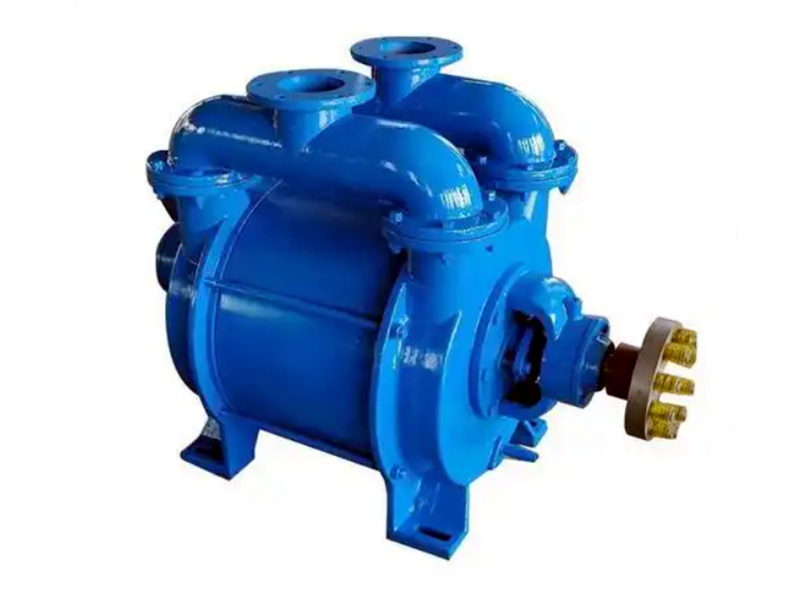

✦ Key Component: Sewage Pump « « «

1. SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of SK pumps , are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

Specification	Unit	Value
Free air capacity	cfm	489
Air capacity at 15" Hg/50% vacuum	cfm	5 12
Max. Vacuum	Hg (in.)	28
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	20
Power required at max. pressure	hp a	38
Max. speed	rpm	1400
Working speed	rpm	1200
Oil tank capacity	lt	4.8
Oil consumption	Gr/h	210
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	80
Hose	in	3/4
Flange	in	-
Weight	lbs	58 5

✦ Paint Anti-Corrosion Process « « «

♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating) .

♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.

♦ S andblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.

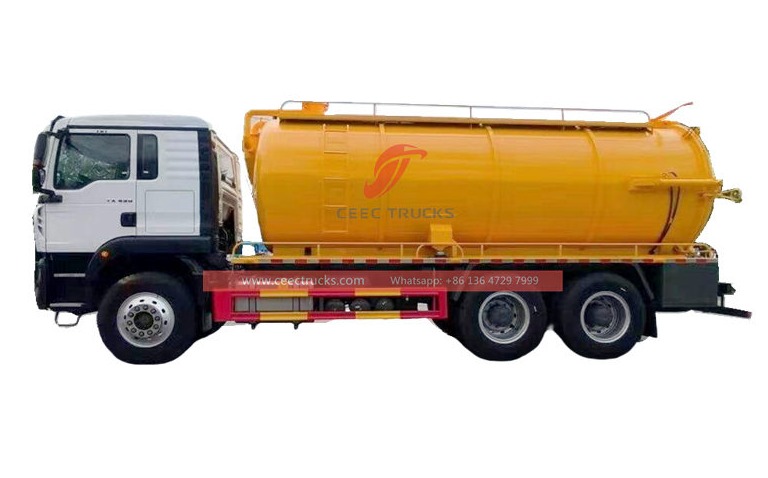

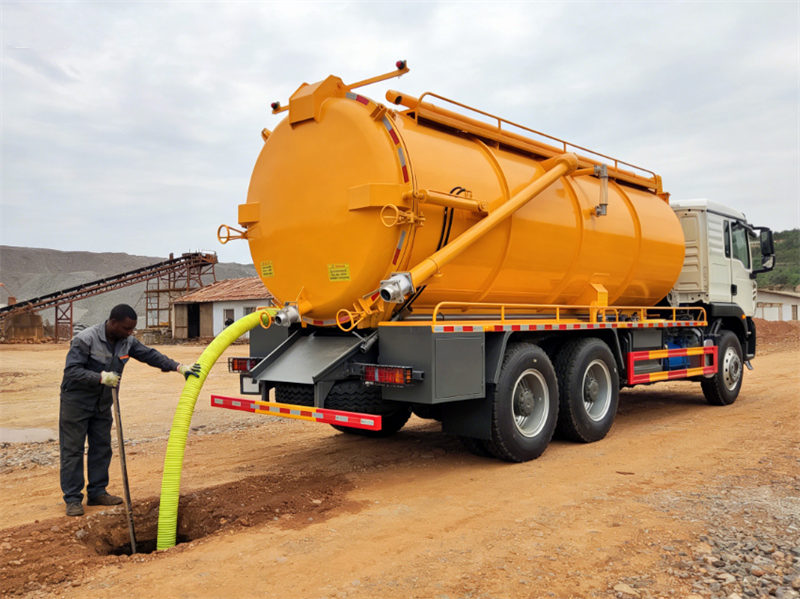

Howo vacuum sewage tank truck

✦ Tank Sealing Of Howo Sewage Tanker « « «

♦ T he tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.

♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.

♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).

♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.

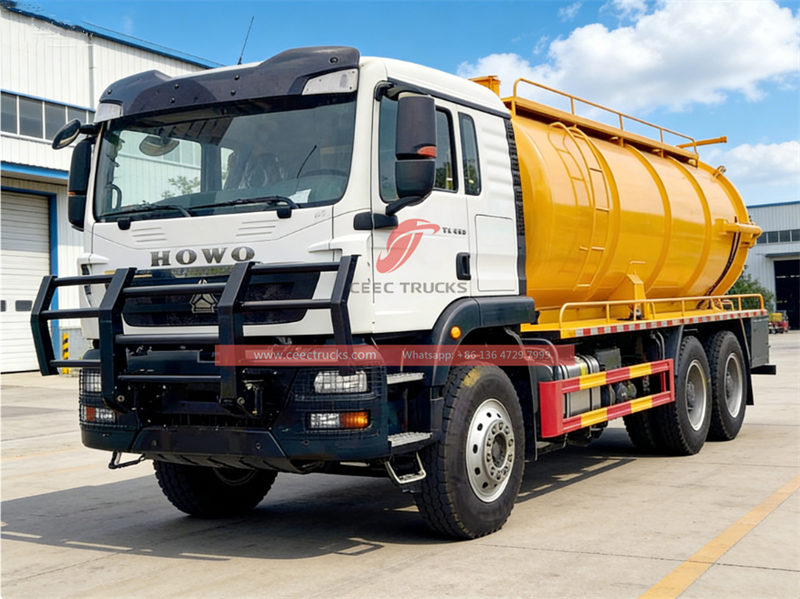

Howo vacuum sewage tank truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5. promptly delivery. any order is welcome.

We CEEC TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

★ Uri ng Euro 2, napakalakas ng makina

★ Vacuum pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized Howo sewage suction trucks exporter

★ Training service for Howo sewer cleaner trucks

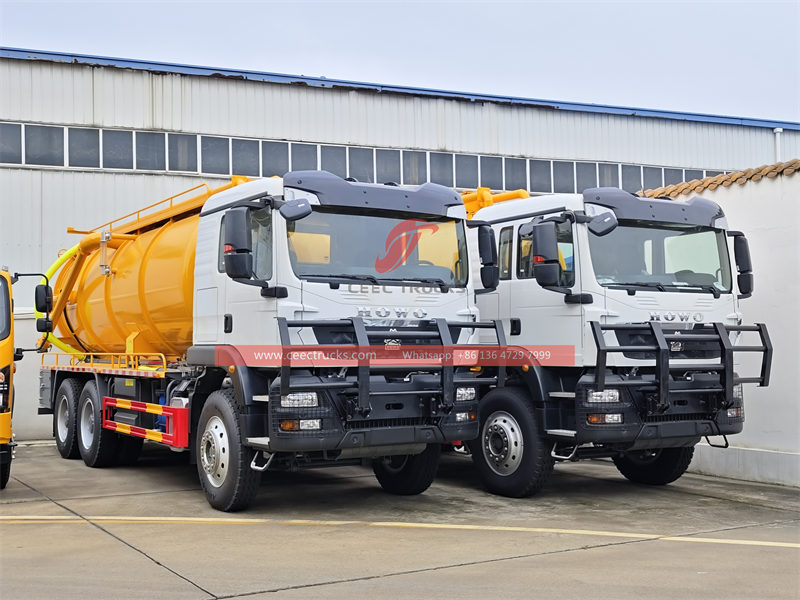

HOWO vacuum suction truck

Ang CEEC TRUCKS ay isang nangungunang tagaluwas ng mga Howo vacuum suction truck sa Tsina. Mayroon kaming mahigit 10 taong karanasan sa pag-export ng mga vacuum truck. Masisiguro namin ang mabilis na oras ng paghahatid at 12 buwang garantiya para sa aming mga trak ng panlinis ng alkantarilya. Ang aming mga vacuum tank truck ay ibinebenta sa mahigit 80 bansa kabilang ang Silangang Europa at mga bansang CIS, Africa, Timog-silangang Asya, Gitnang at Timog Amerika, Gitnang Silangan, atbp.
